New Attachments

Attachments tailor Cat machines to the specific requirements of a customer's working needs. Caterpillar Attachments enhance the productivity and utility of Caterpillar machines, equipping them for a wide range of tasks and operating requirements, and providing total system solutions for any job application.


To see all of our new attachments currently for sale, click on the images below:

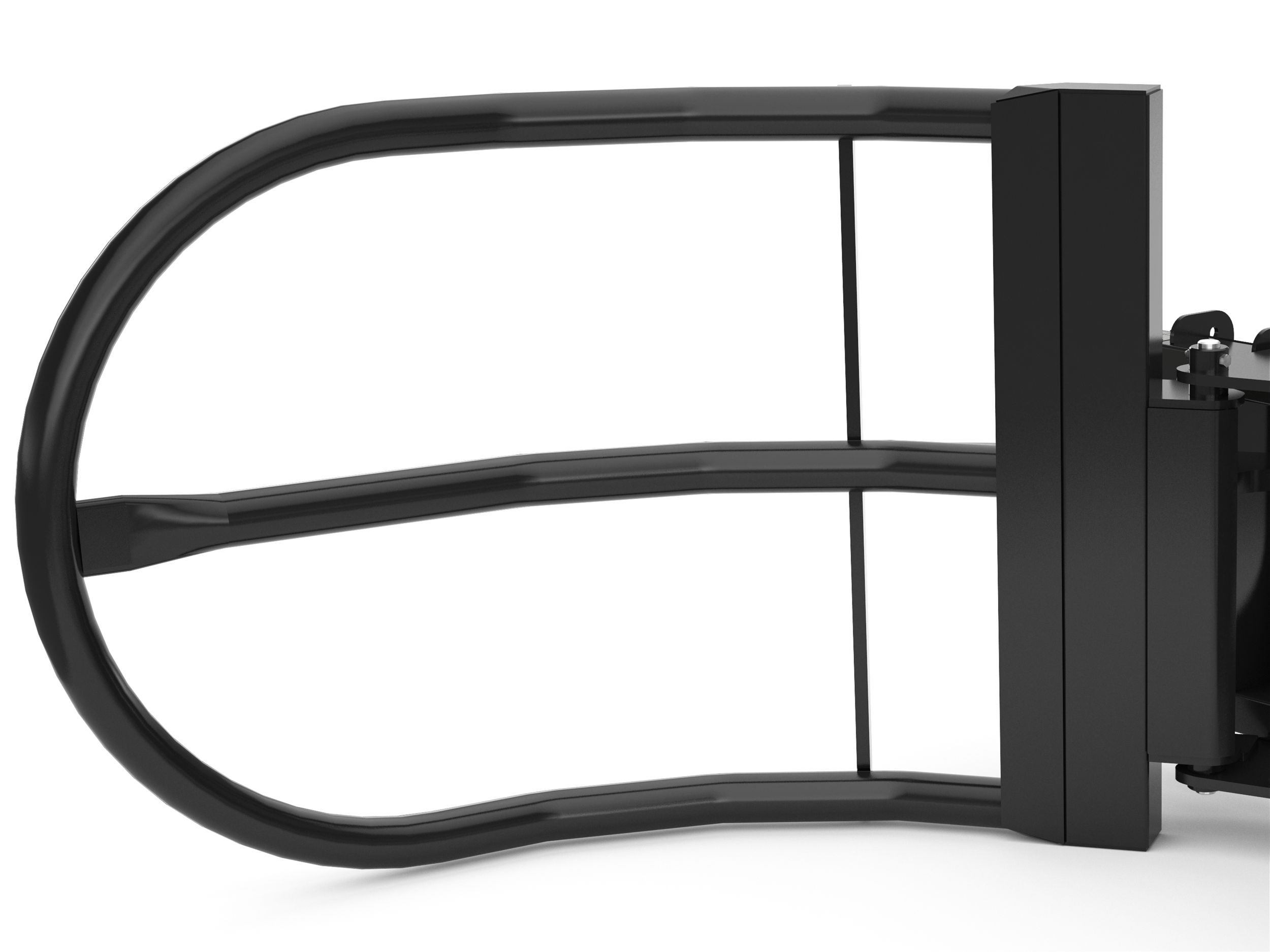

Bale Grabs 1803 mm (71 in)

Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.

Bale Grabs 1803 mm (71 in)

Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.
Units: USMetric
Overall Width 55.2 in 1401 mm
Overall Height 34.4 in 873 mm
Maximum Opening Width 71 in 1803 mm
Capacity 2405.2 lb 1091 kg
Overall Depth 61 in 1550 mm
Weight 575.4 lb 261 kg
Working Pressure 3045.8 psi 21000 kPa
Internal Width, Arms Closed 37 in 940 mm
Required Hydraulics Standard Flow
Large Capacity Opening
Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.
Tubular Arms
Tubular constructed arms eliminate damage to wrapped bales.
Bolt-On Serrated Step
Bolt-On serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.
High Strength Rigid Frame
High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.
