New Equipment

We supply the best heavy equipment so you can build a better business!

Toromont Cat is the trusted dealership in Canada for authentic Caterpillar heavy equipment. We have a wide selection of Cat equipment that includes over 300 machines and 1,200 specialized product attachments for projects in a variety of industries such as construction, mining and forestry. With our extensive product line and first-class customer service, we aim to be your first choice when looking for new heavy equipment.

Caterpillar equipment is recognized and respected globally for its reliability and durability, and at Toromont Cat, we proudly maintain all of our new construction equipment to the highest standards so that it exceeds your expectations on the job site. Whether you’re looking for wheel loaders, excavators, dozers or articulated trucks, you can count on us to help you complete your projects with cost-effective and technologically advanced solutions.

When you choose to buy new heavy equipment with us, you will always be provided with quality machines and superior after-sales support.

If you’re currently working on a project that requires new heavy equipment, call us today!

To see all of our new heavy equipment currently for sale, click on the images below:

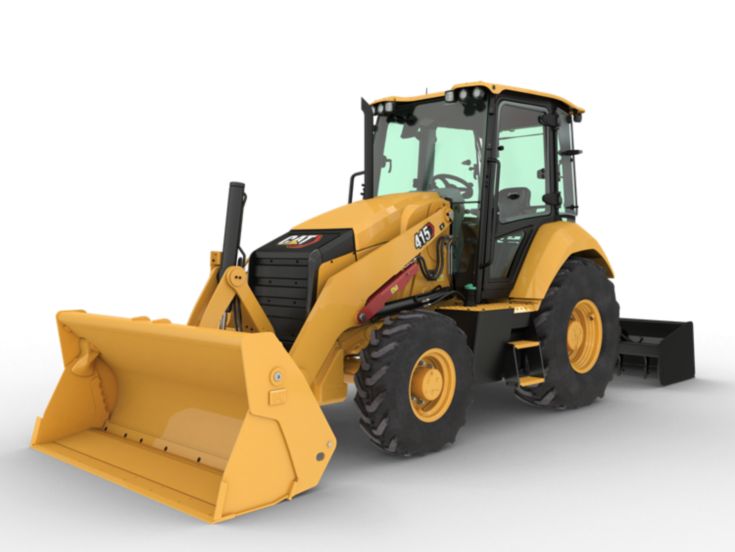

Center-Pivot Backhoe Loaders 415 IL

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

Center-Pivot Backhoe Loaders 415 IL

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.
Units: USMetric

Axle Ratings

Rear Axle - Dynamic 20233 lb 9186 kg
Front Axle (4WD) - Static 26455 lb 12000 kg
Front Axle (4WD) - Dynamic 13228 lb 6000 kg
Rear Axle - Static 50582 lb 22964 kg
Units: USMetric

Counterweights - Front - Minimum Recommendations

Standard Stick - MP Loader Bucket - 4WD no counterweight
Standard Stick - GP Loader Bucket - 4WD 255 lb 116 kg
Units: USMetric

Engine

Net Power - SAE J1349:2011 69 hp 52 kW
Engine Model Cat C3.6
Bore 3.86 in 98 mm
Stroke 4.72 in 120 mm
Displacement 220 in³ 3.6 l
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349 308 ft·lbf 418 N·m
Gross Power - SAE J1995:2014 75 hp 56 kW
Net Peak Power - 2,200 rpm - SAE J1349 69 hp 52 kW
Gross Power - ISO 14396 74 hp 55 kW
Net Torque Rise - 1,200 rpm 86 % 86 %
Note No derating required up to 2286 m (7,500 ft).
Net Power - 2,200 rpm - SAE J1349 69 hp 52 kW
Rated Net Power - 2,200 rpm - ISO 9249 69 hp 51 kW
Net Peak Power - 2,200 rpm - ISO 9249 69 hp 51 kW
Units: USMetric

Hydraulic System

Pump Type Variable Flow, Axial Piston
Type Closed Center
System Pressure - Loader 2973 psi 20500 kPa
System Pressure - Hitch/Box Scraper 2973 psi 20500 kPa
Pump Capacity at 2,200 rpm 33 gal/min 125 l/min
Units: USMetric

Service Refill Capacities

Hydraulic System 23.8 gal (US) 90 l
Rear Axle 4.4 gal (US) 16.5 l
Cooling System with Air Conditioning 4.4 gal (US) 16.5 l
Fuel Tank 42 gal (US) 160 l
Front Axle (4WD) - Planetaries 0.2 gal (US) 0.7 l
Engine Oil - With Filter 2.3 gal (US) 8.8 l
Front Axle (4WD) 2.9 gal (US) 11 l
Rear Axle - Planetaries 0.4 gal (US) 1.7 l
Transmission - Power Shuttle - 2WD 4 gal (US) 15 l
Transmission - Power Shuttle - 4WD 4 gal (US) 15 l
Hydraulic Tank 10.6 gal (US) 40 l
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Units: USMetric

Steering

Bore 2.6 in 65 mm
Stroke 4.2 in 106 mm
Rod Diameter 1.6 in 40 mm
Power Steering Hydrostatic
Axle Oscillation 11°
Type Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels 26.8 ft 8.18 m
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket 36 ft 10.97 m
Units: USMetric

Tires

Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24
Units: USMetric

Transmission

Power Shuttle Transmission - Standard - Reverse - 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission - Standard - Forward - 3rd 13 mile/h 20 km/h
Power Shuttle Transmission - Standard - Reverse - 3rd 13 mile/h 20 km/h
Power Shuttle Transmission - Standard - Reverse - 4th 23 mile/h 36 km/h
Power Shuttle Transmission - Standard - Forward - 4th 23 mile/h 36 km/h
Power Shuttle Transmission - Standard - Forward - 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission - Standard - Forward - 1st 3.4 mile/h 5.4 km/h
Power Shuttle Transmission - Standard - Reverse - 1st 3.4 mile/h 5.4 km/h
Units: USMetric

Weights

Operating Weight - Maximum 17637 lb 8000 kg
Cab - ROPS/FOPS 359 lb 163 kg
Air Conditioning 101 lb 46 kg
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb 745 kg
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb 915 kg
Operating Weight - Maximum - ROPS Capacity 17637 lb 8000 kg
Front Counterweight - Counterweights - Option 3 1015 lb 460 kg
Rear Counterweight 198 lb 90 kg
Note *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank.
Front Counterweight - Counterweights - Option 1 255 lb 115 kg
Front Counterweight - Counterweights - Option 2 530 lb 240 kg
Minimum Operating Weight 14035 lb 6366 kg
Ergonomic Operator Station
Ample legroom inside the cab makes rotating the seat simple. The Adjustable Mechanical Suspension seat provides comfort to the operator while roading.
Complete Machine Control
The Cat Industrial Loader offers dual differential lock control. In adverse conditions, the operator has the option of engaging the differential lock from the floor mounted pedal or by using the push button on the loader joystick.
Superior Blade Controls
The Cat Industrial Loader offers finger lever pilot controls that require less operator effort. The 415 IL comes standard with a five function hydraulic valve for increased versatility.
Machine Performance
The proven Cat C3.6 engine delivers solid performance, meets U.S. EPA Tier 4 Final/EU Stage V emission standards, and requires no diesel exhaust fluid (DEF).
Machine Versatility
The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Industrial Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.
Cat Attachments
A large portfolio of Attachments, including but not limited to assorted Buckets, Brooms, Snow Pushes and Brooms are for field installation.
STANDARD EQUIPMENT
Air cleaner
