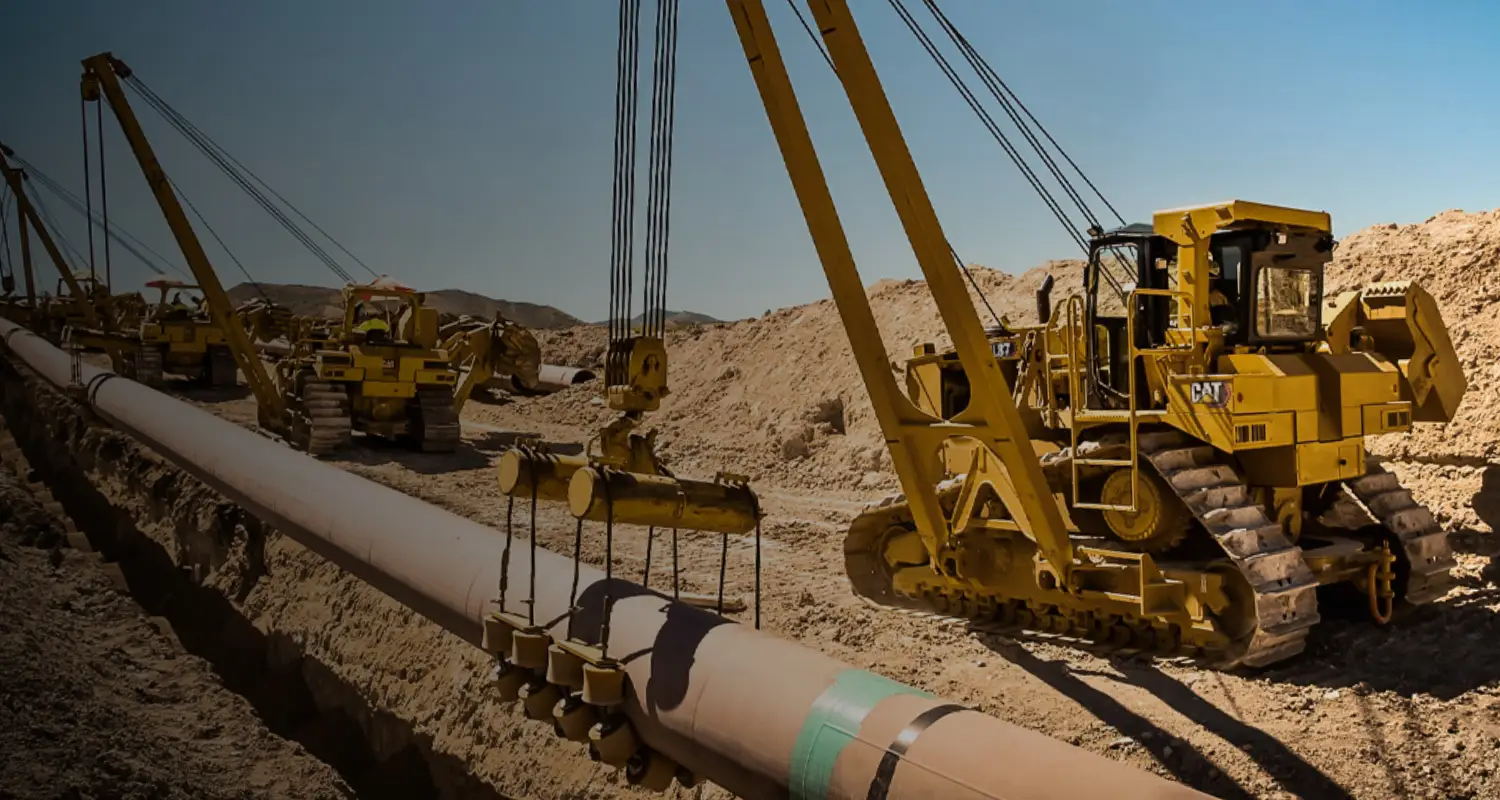

Pipelayers PL61

The full line of purpose-built Cat pipe layers is designed for performance, safety and serviceability. The experienced support of the Cat dealer network means your key pipe line equipment is available when and where you need it.

Images

Download product brochure #1

Download product brochure #2

Pipelayers PL61

The full line of purpose-built Cat pipe layers is designed for performance, safety and serviceability. The experienced support of the Cat dealer network means your key pipe line equipment is available when and where you need it.

Download product brochure #1

Download product brochure #2

(416) 667-5511

Request a Quote

Find a dealer near you

Units: US Metric

Air Conditioning System

Specification	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.3 kg of refrigerant which has a CO2 equivalent of 1.859 metric tons.

Units: US Metric

Dimensions

Specification	Value
Width - Tractor - With 760 mm [30 in] Shoes	109 in 2760 mm
Width - Tractor - With 560 mm [22 in] Shoes	101 in 2560 mm
Width - Counterweight Extended	187 in 4750 mm
Width - Tractor - Counterweight Retracted	128 in 3240 mm
Width - Tractor - Counterweight/Boom Removed	126 in 3190 mm
Track Gauge	79 in 2000 mm
Operating Length	151 in 3850 mm
Length - Track on Ground	104 in 2645 mm
Machine Height - Tip of Winch	101 in 2570 mm
Height of Machine from Tip of Grouser to Top of Stack(1)	112 in 2850 mm
Height - Top of ROPS: Canopy/Cab	118 in 2985 mm
Boom Height (at SAE 1.22 m [4 ft] overhang)	245 in 6220 mm

Units: US Metric

Engine

Specification	Value
Engine Model	Cat C4.4
Flywheel Power	130 hp 97 kW
Net Power - 2,200 rpm - ISO 9249	130 hp 97 kW
Net Power - 2,200 rpm - ISO 9249 (DIN)	132 hp 132 hp
Cat C4.4 Emissions	U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final
Cat C7.1 Emissions	China Nonroad Stage III, equivalent to Tier 3/Stage IIIA
Fuel Tank	69 gal (US) 260 l
DEF Tank(1)	5 gal (US) 19 l
Note (1)	All nonroad Tier 4 Final, Stage IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2)	Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Note (3)	(1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.

Units: US Metric

Pipelaying Equipment

Specification	Value
Lift Capacity	40000 lb 18144 kg

Units: US Metric

Undercarriage

Specification	Value
Track Gauge	79 in 2000 mm
Track on Ground	104 in 2645 mm
Ground Contact Area - LGP	6920 in² 4.46 m²
Ground Contact Area - Narrow	5100 in² 3.29 m²
Ground Pressure(1) - LGP	5.9 psi 40.8 kPa
Ground Pressure(1) - Narrow	7.8 psi 53.9 kPa
Ground Pressure - LGP	6.3 psi 40.9 kPa
Ground Pressure - Narrow	7.9 psi 54 kPa
Number of Shoes/Rollers - Each Side	40/8
Track Shoe Width - Narrow/LGP	560/760 mm (22/30 in)
Note	(1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.

Units: US Metric

Weights - Operating Weight

Specification	Value
Cab, 560 mm (22 in) Shoes(1)	39890 lb 18090 kg
Cab, 560 mm (22 in) Shoes	40060 lb 18170 kg
Cab, 760 mm (30 in) Shoes(1)	40920 lb 18560 kg
Cab, 760 mm (30 in) Shoes	41095 lb 18640 kg
Note	(1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.

Units: US Metric

Weights - Shipping Weight

Specification	Value
Cab, 560 mm (22 in) Shoes(1)	37570 lb 17040 kg
Cab, 560 mm (22 in) Shoes	37720 lb 17110 kg
Cab, 760 mm (30 in) Shoes(1)	38600 lb 17510 kg
Cab, 760 mm (30 in) Shoes	38780 lb 17590 kg
Note	(1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.

BUILT TO PERFORM

18 ton (40,000 lb.) lift capacity with side boom.
Easy transport width at 3240 mm (128 in).
More robust fuel system with advanced filtration to better withstand poor fuel conditions (engines equivalent to Tier 3/Stage IIIA).
Cold weather package provides added features for cab comfort and more reliable engine starting/performance in cold environments.

OPERATOR COMFORT AND CONTROL

Hystat transmission, faster steering response for superior maneuverability on the pipeline.
Choice of narrow or wide tracks to optimize for job site ground conditions.
Durability in rough terrain with heavy duty undercarriage.
Ergonomically designed right joystick places all boom, hook and counterweight function conveniently in one hand.
Comfortable cab with air suspension seat, ergonomic controls and excellent visibility.
Improved heating/ventilation/air conditioning system that better circulates around the operator using a canopy machine.

TOP-TIER SERVICE AND SUPPORT

Worldwide Cat dealer network understands pipeline job site needs for outstanding support, even in remote areas.
Purpose-built pipelayer gives you a single source for parts and service on all components.
Easy access to grouped maintenance and diagnostic points.
Simplified cable replacement – no need to thread through hood.
Updated cooling package allows more air flow, reducing fan speed for greater efficiency.
Hydraulic demand fan automatically reduces fan speed in cooler conditions to help save fuel.
Hydraulic reversing fan offers automatic or manual modes and changes direction to blow debris out of the radiator cores.
Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.

BUILT-IN SAFETY FEATURES

Rear vision camera, with dedicated display, adds to visibility for greater safety.
Load Monitor Indicator (LMI) delivered with the machine for simple installation of load monitor system on the job site.
Quick drop release function now common with other Cat pipelayer models for added ease of use.
Rear window exit now common across Cat pipelayer product line.
Factory integrated Roll Over Protective Structure (ROPS) helps protect operators and machine in case of rollover.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

ROPS Cab with cloth seat or ROPS Canopy with vinyl seat

PIPELAYER

Boom, 5.49 m (18 ft)

POWER TRAIN

Aluminum bar plate cooling system (radiator, power train, aftercooler)

UNDERCARRIAGE

Heavy duty undercarriage

ELECTRICAL

Alarm, back up
