Skid Steer and Compact Track Loaders

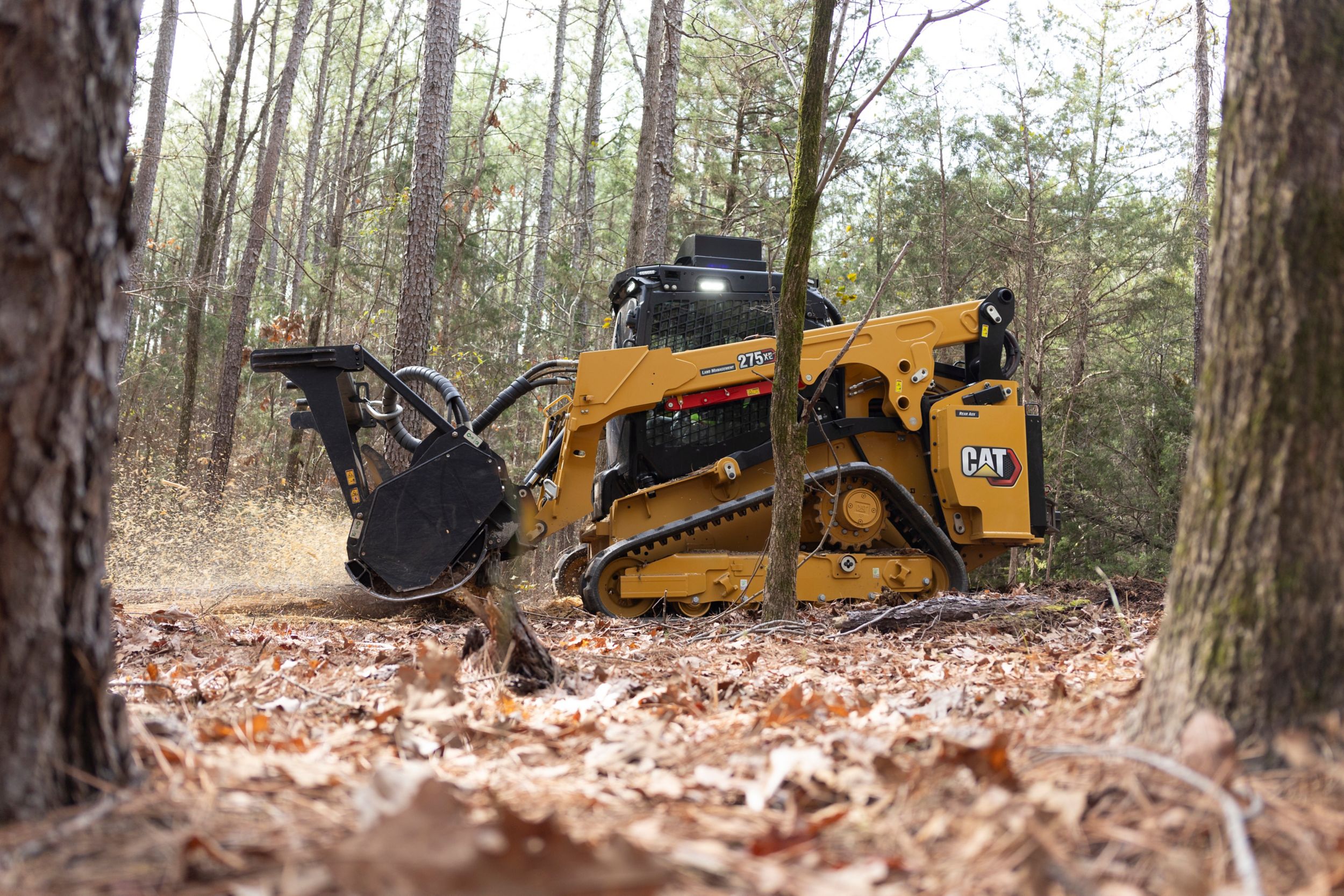

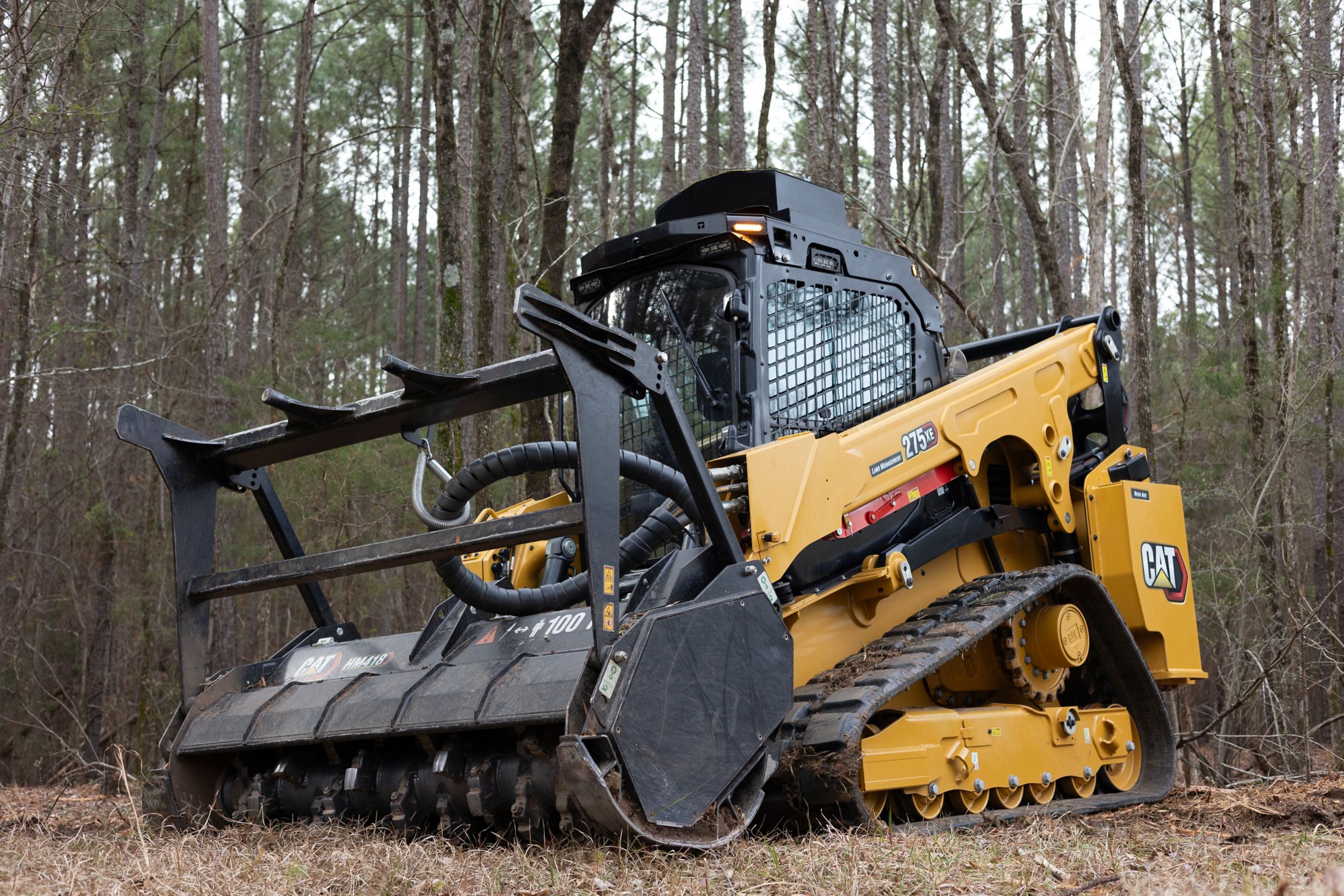

Compact Track Loaders 275 XE

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.
Download product brochure #1
Download product brochure #2

Compact Track Loaders 275 XE

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.
Download product brochure #1
Download product brochure #2
1-800-268-1965
Request a Quote
Find a dealer near you
Units: USMetric

Cab

FOPS ISO 3449:2005 Level I
ROPS ISO 3471:2008
FOPS Level II ISO 3449:2005 Level II (Optional)
Units: USMetric

Dimensions

Bucket Pin Height - Carry Position 8.1 in
Bucket Pin Height - Maximum Lift 134.4 in
Bucket Pin Reach - Maximum Lift 16.3 in
Clearance at Maximum Lift and Dump 106.1 in
Departure Angle 29.5°
Ground Clearance 11 in
Height - Top of Cab 87.8 in
Length - Track on Ground 72.3 in
Length - With Bucket on Ground 152.8 in
Length - Without Bucket 128 in
Maximum Overall Height 165.1 in
Maximum Reach - With Arms Parallel to Ground 46.1 in
Overall Length - Track 92.2 in
Rack Back Angle - Maximum Height 86.7°
Reach at Maximum Lift/Dump 32 in
Roll Back Angle 27.3°
Turning Radius from Center - Bucket (racked) 91.3 in
Turning Radius from Center - Coupler 60.3 in
Turning Radius from Center - Machine Rear 76 in
Vehicle Width (450 mm/17.7 in tracks) 77.8 in
Maximum Dump Angle 44.7°
Units: USMetric

Dimensions*

Vehicle Width (400 mm/15.7 in tracks) 75.8 in
Units: USMetric

Engine

Gross Power - SAE J1995 122 hp
Bore 4.7 in
Displacement 221 in²
Net Power - ISO 9249 120 hp
Net Power - SAE 1349 82 hp
Peak Torque at 1,360 rpm SAE J1995 370 lb/ft
Peak Torque - 1,500 rpm - SAE J1995 406 lb/ft
Stroke 3.9 in
Engine Model Cat® C3.6 TA (turbocharged after-cooled)
Units: USMetric

Hydraulic System

Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure 4496 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow 34 gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* 40 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3500 psi
Hydraulic Flow - XE - Hydraulic Power (calculated) 103.9 hp
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 23 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3500 psi
Units: USMetric

Operating Specifications

Rated Operating Capacities - 35% Tipping Load 4205 lb
Breakout Force - Lift Cylinder 6422 lb
Breakout Force - Tilt Cylinder 9963 lb
Ground Contact Area - With 450 mm/17.7 in Track 2808 in²
Ground Pressure - With 450 mm/17.7 in Track 4.5 psi
Rated Operating Capacities - 50% Tipping Load 4033 lb
Rated Operating Capacity with Optional Counterweight 2996 lb
Tipping Load 12015 lb
Units: USMetric

Power Train

Travel Speed - Forward or Reverse - One Speed 5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed 7.8 mile/h
Units: USMetric

Service Refill Capacities

Cooling System 4.6 gal (US)
Engine Crankcase 2.4 gal (US)
Fuel Tank 36.9 gal (US)
Hydraulic System 10.8 gal (US)
Hydraulic Tank 6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank 2.9 gal (US)
Units: USMetric

Weights*

Operating Weight 12705 lb
Counterweight Adds to Operating Weight 428 lb
Counterweight Adds to Operating Weight - ROC (35%) 279 lb
Counterweight Adds to Operating Weight - Tip Load 796 lb
Enclosed Cab Adds to Operating Weight 218 lb
Enclosed Cab Adds to Operating Weight - ROC (35%) 105 lb
Enclosed Cab Adds to Operating Weight - Tip Load 214 lb
Note * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Redesigned Operator Station
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 275 XE provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Available ventilated and heated high-back air ride seat
Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.
High-performance power train
The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.
XE Hydraulic system
The XE hydraulic system provides the highest flow and highest pressure, delivering great hydraulic horsepower to efficiently run even the most power-hungry attachments.
Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine
The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.
Standard equalizer bar (E-bar) undercarriage and standard two-speed travel
The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.
Advanced Touchscreen Monitor
The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
Advanced Joysticks
Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-level access
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Cat Attachments
Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.
STANDARD EQUIPMENT
Quick Coupler: Manual or Hydraulic
OPERATOR ENVIRONMENT
Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
HYDRAULICS
Selectable control pattern – ISO or H
POWER TRAIN
Cat C3.6TA turbocharged, after-cooled diesel engine, meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection
UNDERCARRIAGE
Torsion Suspension (4 independent torsion axles)
FRAME
Machine tie down points (9)
OTHER
Auxiliary Hydraulics, Continuous Flow
PERFORMANCE PACKAGES
Performance Package HP1: Standard Flow Hydraulics
COMFORT PACKAGES
Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)
TECHNOLOGY PACKAGES
T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.
RADIO
Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
PRODUCT LINK™
Product Link™ Basic series PL243
COOLING FAN
On-demand, variable speed hydraulic cooling fan
GUARDING AND SEALING PACKAGES
HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)
ELECTRICAL
Work Tool Electrical Harness
