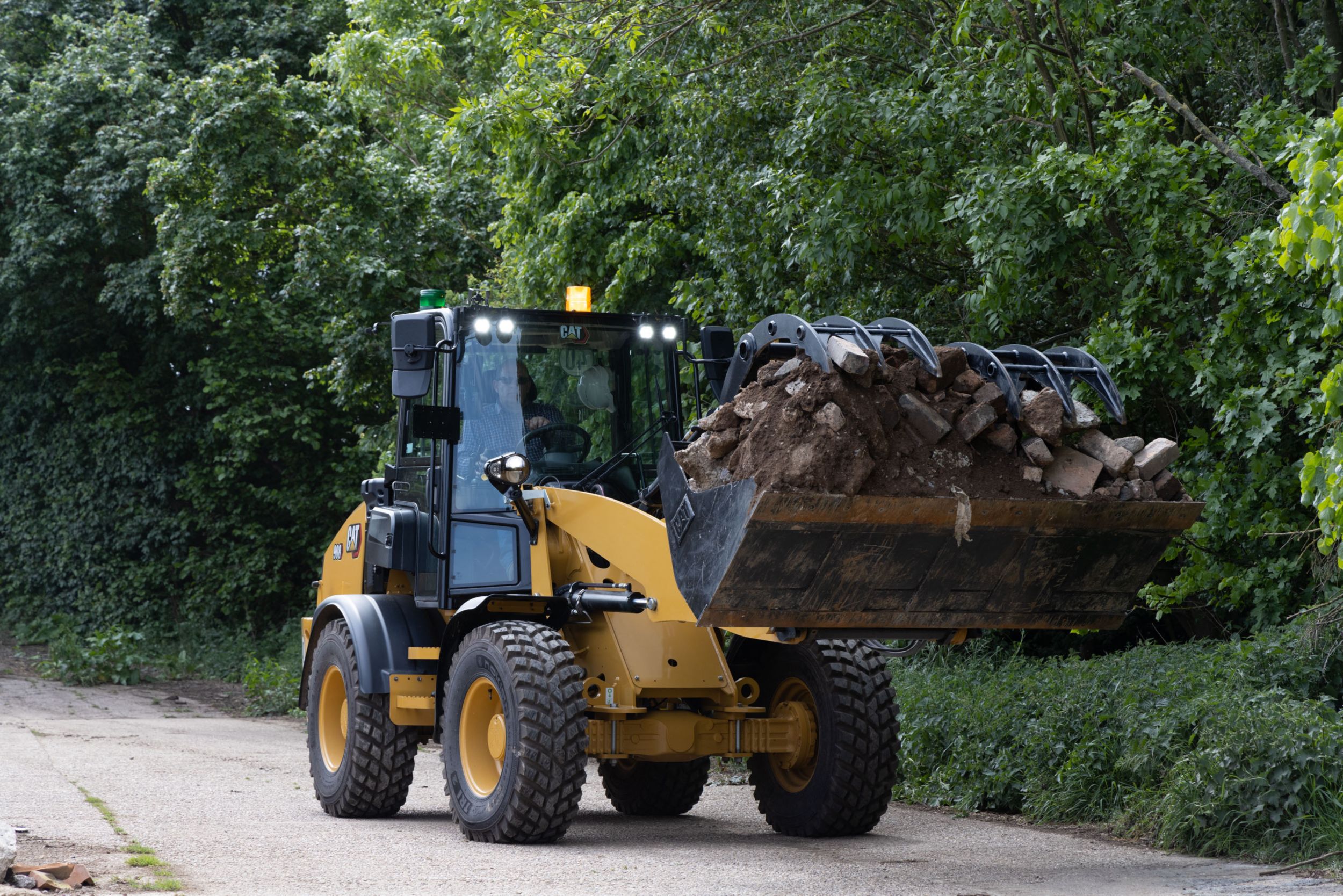

Compact Wheel Loaders 908

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Compact Wheel Loaders 908

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

(416) 667-5511

Request a Quote

Find a dealer near you

Units: US Metric

Axles

Specification	Value
Front	Fixed (standard), Locking Differential (optional)
Rear	Fixed (standard), Locking Differential (optional)
Note	Oscillation of ±11 degrees via hitch between front and rear frames.

Units: US Metric

Buckets

Specification	Value
Bucket Capacities	0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose	0.80-1.35 m³ (1.0-1.7 yd³)
Multi-Purpose	0.75-1.1 m³ (1.0-1.4 yd³)
Bucket Capacities - Light Material	1.25-1.55 m³ (1.6-2.0 yd³)
Note	Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)	Bucket capacities stated include BOCE, in line with ISO 7546.

Units: US Metric

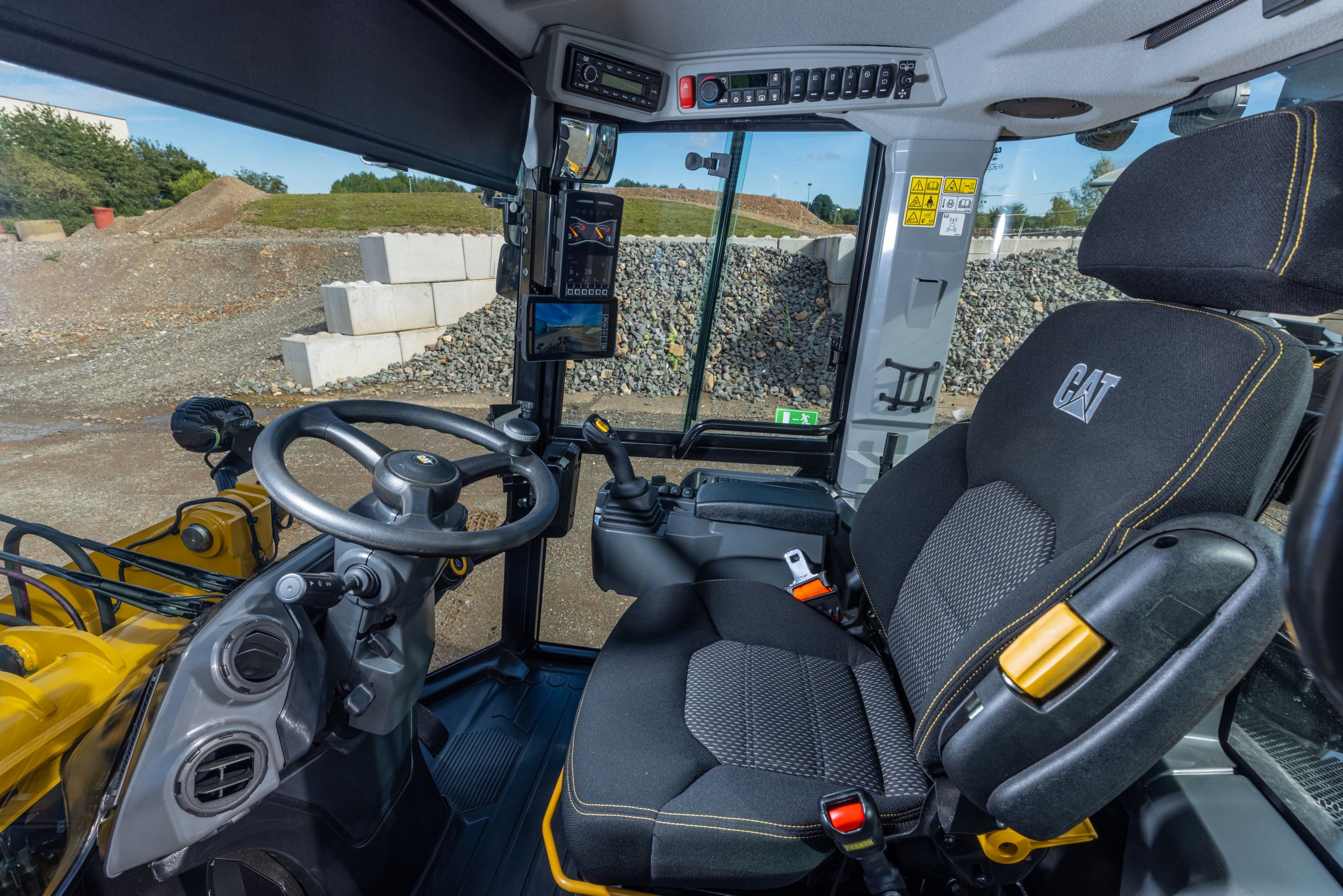

Cab

Specification	Value
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level II
Note (1)	Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.

Units: US Metric

Dimensions - High Lift - With HPL-V Coupler - Approximate#

Specification	Value
Height: Ground to Cab**	8.75 ft 2670 mm
Height: Ground to Beacon**	9.33 ft 2849 mm
Height: Ground Axle Center**	1.67 ft 519 mm
Height: Ground Clearance**	1 ft 320 mm
Length: Overall*	19.67 ft 6000 mm
Length: Rear Axle to Bumper	4.5 ft 1391 mm
Length: Hitch to Front Axle	3.5 ft 1085 mm
Length: Wheel Base	7.08 ft 2170 mm
Clearance: Bucket at 45° *	10.92 ft 3338 mm
Clearance: Load over Height**	10.75 ft 3282 mm
Clearance: Level Bucket**	12.08 ft 3693 mm
Height: Bucket Pin**	12.75 ft 3898 mm
Height: Overall**	15.67 ft 4769 mm
Reach: Bucket at 45° *	3.25 ft 990 mm
Carry Height: Bucket Pin	1.17 ft 367 mm
Dig Depth**	0.33 ft 109 mm
Width: Bucket	6.75 ft 2045 mm
Width: Tread Center	5.08 ft 1570 mm
Turning Radius: Over Bucket	15.83 ft 4825 mm
Width: Over Tires	6.67 ft 2021 mm
Turning Radius: Outside of Tires	13.17 ft 4005 mm
Turning Radius: Inside of Tires	6.5 ft 1981 mm
Rack Angle at Full Lift	69°
Dump Angle at Full Lift	40°
Rack Angle at Carry	48°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	14848 lb 6735 kg
Tipping Load - Straight - ISO 14397-1?†	9187 lb 4167 kg
Tipping Load - Full Turn - ISO 14397-1?†	7645 lb 3468 kg
Operating Weight: Carriage and Tines?^^	14542 lb 6596 kg
Tipping Load - Straight?†	9187 lb 4167 kg
80% of Tip: Firm and Level EN474-3?††	4706 lb 2135 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9

Units: US Metric

Dimensions - High Lift - With SSL Coupler - Approximate

Specification	Value
Height: Ground to Cab**	8.75 ft 2670 mm
Height: Ground to Beacon**	9.33 ft 2849 mm
Height: Ground Axle Center**	1.67 ft 519 mm
Height: Ground Clearance**	1 ft 320 mm
Length: Overall*	20.17 ft 6157 mm
Length: Rear Axle to Bumper	4.5 ft 1391 mm
Length: Hitch to Front Axle	3.5 ft 1085 mm
Length: Wheel Base	7.08 ft 2170 mm
Clearance: Bucket at 45° *	10.42 ft 3181 mm
Clearance: Load over Height**	10.75 ft 3282 mm
Clearance: Level Bucket**	12.08 ft 3684 mm
Height: Bucket Pin**	12.75 ft 3898 mm
Height: Overall**	15.92 ft 4859 mm
Reach: Bucket at 45° *	3.42 ft 1048 mm
Carry Height: Bucket Pin	1.25 ft 388 mm
Dig Depth**	0.42 ft 117 mm
Width: Bucket	6.75 ft 2045 mm
Width: Tread Center	5.08 ft 1570 mm
Turning Radius: Over Bucket	16.17 ft 4919 mm
Width: Over Tires	6.67 ft 2021 mm
Turning Radius: Outside of Tires	13.17 ft 4005 mm
Turning Radius: Inside of Tires	6.5 ft 1981 mm
Rack Angle at Full Lift	66°
Dump Angle at Full Lift	40°
Rack Angle at Carry	42°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	15070 lb 6836 kg
Tipping Load - Straight - ISO 14397-1?†	8385 lb 3803 kg
Tipping Load - Full Turn - ISO 14397-1?†	6943 lb 3149 kg
Operating Weight: Carriage and Tines?^^	14714 lb 6674 kg
Tipping Load - Straight?†	8385 lb 3803 kg
80% of Tip: Firm and Level EN474-3?††	4375 lb 1984 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9

Units: US Metric

Dimensions - With HPL-V Coupler - Approximate#

Specification	Value
Height: Ground to Cab**	8.75 ft 2670 mm
Height: Ground to Beacon**	9.33 ft 2849 mm
Height: Ground Axle Center**	1.67 ft 519 mm
Height: Ground Clearance**	1 ft 320 mm
Length: Overall*	18.17 ft 5544 mm
Length: Rear Axle to Bumper	4.5 ft 1391 mm
Length: Hitch to Front Axle	3.5 ft 1085 mm
Length: Wheel Base	7.08 ft 2170 mm
Clearance: Bucket at 45° *	8.58 ft 2623 mm
Clearance: Load over Height**	9.75 ft 2960 mm
Clearance: Level Bucket**	10.5 ft 3206 mm
Height: Bucket Pin**	11.17 ft 3412 mm
Height: Overall**	14.17 ft 4313 mm
Reach: Bucket at 45° *	2.33 ft 706 mm
Carry Height: Bucket Pin	1.17 ft 367 mm
Dig Depth**	0.33 ft 109 mm
Width: Bucket	6.75 ft 2080 mm
Width: Tread Center	5.08 ft 1570 mm
Turning Radius: Over Bucket	14.75 ft 4493 mm
Width: Over Tires	6.67 ft 2021 mm
Turning Radius: Outside of Tires	13.17 ft 4005 mm
Turning Radius: Inside of Tires	6.5 ft 1981 mm
Rack Angle at Full Lift	53°
Dump Angle at Full Lift	45°
Rack Angle at Carry	51°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	14633 lb 6637 kg
Tipping Load - Straight - ISO 14397-1?†	10626 lb 4820 kg
Tipping Load - Full Turn - ISO 14397-1?†	8895 lb 4035 kg
Operating Weight: Carriage and Tines?^^	14252 lb 6467 kg
Tipping Load - Straight?†	10626 lb 3297 kg
80% of Tip: Firm and Level EN474-3?††	5815 lb 2638 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Length: Front Axle to Front of Coupler	3.92 ft 1200 mm

Units: US Metric

Dimensions - With SSL Coupler - Approximate

Specification	Value
Height - Ground to Cab	8.75 ft 2670 mm
Height: Ground to Beacon**	9.33 ft 2849 mm
Height: Ground Axle Center**	1.67 ft 519 mm
Height - Ground Clearance	1 ft 320 mm
Length - Overall with Bucket	18.67 ft 5707 mm
Length: Rear Axle to Bumper	4.5 ft 1391 mm
Length: Hitch to Front Axle	3.5 ft 1085 mm
Length - Wheel Base	7.08 ft 2170 mm
Clearance - Bucket at 45°	8.25 ft 2511 mm
Clearance: Load over Height**	9.75 ft 2960 mm
Clearance - Level Bucket	10.5 ft 3197 mm
Height - Bucket Pin	11.17 ft 3412 mm
Height: Overall**	14.42 ft 4403 mm
Reach - Bucket at 45°	2.67 ft 811 mm
Carry Height: Bucket Pin	1.25 ft 388 mm
Dig Depth	0.45 ft 117 mm
Width - Bucket	6.75 ft 2080 mm
Width - Tread Center	5.08 ft 1570 mm
Turning Radius - Over Bucket	15.08 ft 4607 mm
Width - Over Tires	6.67 ft 2021 mm
Turning Radius: Outside of Tires	13.17 ft 4005 mm
Turning Radius - Inside Tire	6.67 ft 2033 mm
Rack Angle at Full Lift	50°
Dump Angle at Full Lift	48°
Rack Angle at Carry	54°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	14752 lb 6691 kg
Tipping Load – Straight – ISO 14397-1?†	9581 lb 4347 kg
Tipping Load – Full Turn – ISO 14397-1?†	8141 lb 3693 kg
Operating Weight: Carriage and Tines?^^	14391 lb 6530 kg
Tipping Load - Straight?†	9753 lb 4424 kg
80% of Tip: Firm and Level EN474-3?††	5438 lb 2468 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Tipping Load - Full Turn - ISO 14397-1†	6800 lb 3085 kg
Length: Front Axle to Front of Coupler	4.75 ft 1436 mm

Units: US Metric

Engine

Specification	Value
Maximum Gross Power	74.7 hp 55.7 kW
Engine Model	Cat C2.8*
Maximum Engine Speed	2550 rpm
Maximum Gross Power - Rated Engine Speed	2400 r/min 2400 r/min
Maximum Gross Power - SAE J1995	74.7 hp 55.7 kW
Maximum Gross Power - ISO 14396	74.3 hp 55.4 kW
Maximum Gross Power - ISO 14396 (metric)	75.3 mhp 75.3 mhp
Rated Net Power - Rated Engine Speed	2400 r/min 2400 r/min
Rated Net Power - SAE J1349	72.7 hp 54.2 kW
Rated Net Power - ISO 9249	72.1 hp 53.8 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric)	73.1 mhp 73.1 mhp
Maximum Gross Torque - SAE J1995	222 lb/ft 300 N·m
Maximum Gross Torque - ISO 14396	221 lb/ft 300 N·m
Maximum Net Torque - SAE J1349	218 lb/ft 296 N·m
Maximum Net Torque - ISO 9249	217 lb/ft 295 N·m
Displacement	171 in³ 2.8 l
Bore	3.54 in 90 mm
Stroke	4.33 in 110 mm
Note	Advertised power is tested per the specified standard in effect at the time of manufacture
Note (1)	Net power advertised is the power available at the flywheel.
Note (2)	*Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995).
Note (3)	#Maximum gross and net torque measured at 1,600 rpm.

Units: US Metric

Loader Hydraulic System

Specification	Value
Main Relief - 1st Auxiliary (3rd slice)	3408 psi 23500 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*	24 gal/min 90 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow*	33 gal/min 125 l/min
Main Relief - 2nd Auxiliary (4th slice)	3408 psi 23500 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow	12 gal/min 45 l/min
Hydraulic Cycle Time - Rackback	2.5 s 2.5 s
Hydraulic Cycle Time - Lift	5.8 s 5.8 s
Hydraulic Cycle Time - Dump	1.8 s 1.8 s
Hydraulic Cycle Time - Float Down	3.6 s 3.6 s
Note	* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Units: US Metric

Service Refill Capacities

Specification	Value
Fuel Tank	24 Gal 90 l
Cooling System	3.2 Gal 12 l
Engine Crankcase	2.3 Gal 8.8 l
Axles - Front Center Differential	2.3 Gal 8.8 l
Axles - Rear Center Differential	2.3 Gal 8.8 l
Hydraulic System - Including Tank	18.6 Gal 70.5 l
Hydraulic Tank	11.8 Gal 44.6 l
Transmission	0.6 Gal 2.4 l
Note	No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Units: US Metric

Steering

Specification	Value
Steering Articulation Angle - Each Direction	39 ° 39 °
Maximum Flow - Steering Pump	12.3 gal/min 46.7 l/min
Maximum Working Pressure - Steering Pump	3336 psi 23000 kPa
Steering Cycle Times – (full left to full right) – at High Idle	2.8 s 2.8 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.25 turns or 4.00 turns

Units: US Metric

Sustainability

Specification	Value
Recyclability	93%

Units: US Metric

Tires

Specification	Value
Tire Size - Standard	*405/70 R20 SPT9
Tire Size - Optional	405/70 R20 Powerloads
Tire Size - Optional (1)	400/70 R20 XMCL/Bibload
Tire Size - Optional (2)	360/80 R20 TRI 2
Tire Size - Optional (3)	40X14-20 TL, SM/TR
Note	*This tire has been used for all dimension, stability and performance data.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Units: US Metric

Transmission

Specification	Value
Forward and Reverse - Speed Range Creep#	6 mile/h 10 km/h
Forward and Reverse - Speed Range 1*	6 mile/h 10 km/h
Forward and Reverse - Speed Range 2** - High Speed	10.5 mile/h 17 km/h
Forward and Reverse - Speed Range 2** - Standard	12 mile/h 20 km/h
Forward and Reverse - Speed Range 3***	25 mile/h 40 km/h
Note	#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)	*Creep function not available in this gear or above.
Note (2)	**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)	***Reverse is 30 km/h (19 mph).

Units: US Metric

Weights

Specification	Value
Operating Weight	14617 lb 6632 kg

CONFIGURED FOR SUCCESS

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has ahigh torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

ENJOY ALL DAY COMFORT

All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

EFFICIENTLY POWERFUL

Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
“Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

WORK MADE EASY

All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

CUSTOMIZE YOUR EXPERIENCE

Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

PURPOSE BUILT SPECIALTY MODELS

Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.

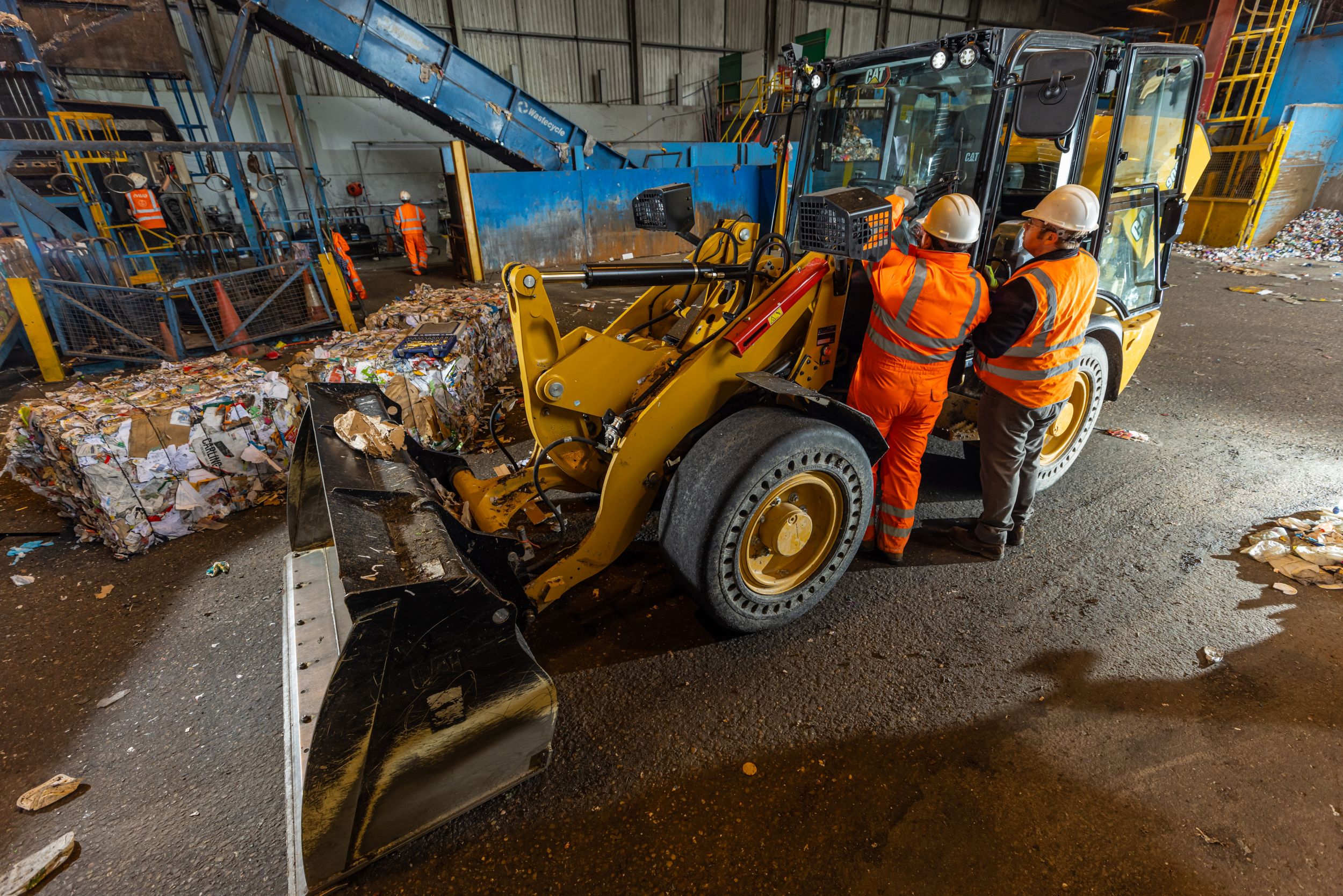

The 908 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

AFTERMARKET AND SERVICES

Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
Integrated Technology available to reduce service costs and maintenance.

SUSTAINABILITY

The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
Shift on the go transmission, means no need to stop so you keep your momentum.

POWER TRAIN

Emissions compliant, two options (Dependent on regional regulations.)
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent

HYDRAULICS

Hydraulic pilot shut off switch, in cab

ELECTRICAL

Alternator, 100 amp sealed

OPERATOR ENVIRONMENT

ROPS/FOPS certified canopy/cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab

OTHER

Fenders, front and rear
