Weiler Forwarders

Robust design for your toughest applications.

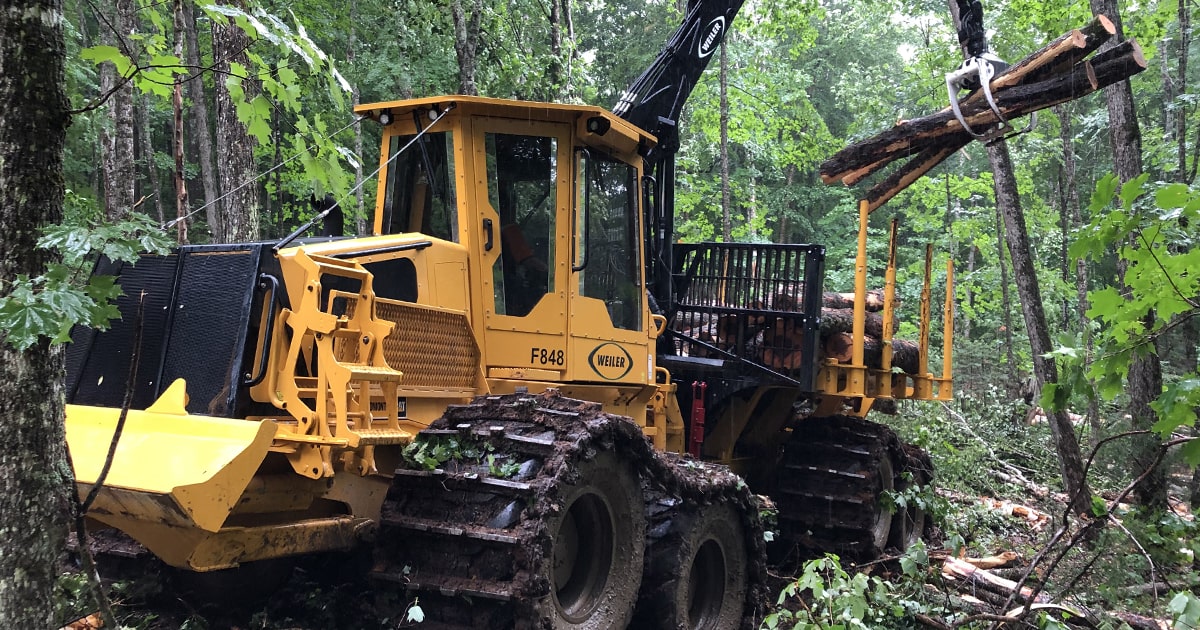

forestry harvester in the forest

Weiler Forwarders are built with heavy duty structures for North America conditions. Their cabs are designed for maximum comfort for operators. With quick access to components,Weiler Forwarders stand out with best-in-class serviceability.

F848

forestry harvester placing logs down to be transported

Engine Model
Cat® C7.1 Stage 5 Cat® C7.1 Stage 5

Gross Power
300 hp (224kW) 224 kW

Tractive effort
50,860 lbf (19,504 kgf) 19,504 kgf

View Product

F888

Engine Model
Cat® C7.1

Operating Weight
63,000 lb 224 kW

Maximum Reach
32 ft 19,504 kgf

Learn more

TRACTIVE EFFORT

Two speed hydrostatic drive provides optimal power on grade and on steep slope conditions. The dynamic braking system provides better control on slopes and reduces wear on the drive system while offering better tire life and improved ride characteristics.

HEAVY DUTY STRUCTURES

Designed for tough applications in North America. The center section with heavy duty cast articulation knuckle and dual tapered roller bearings offer long life and low maintenance. Thick reinforced skid plates on the underside of the machine offer maximum protection for rocky terrain.

MAXIMUM OPERATOR COMFORT

Spacious cab maximizes operator experience with optimal visibility to the front and rear of the machine. The machine control features a user-friendly touch screen fixed to the left hand arm rest and rotates with the seat. The seat can be locked in any position for comfort and versatility.

BEST IN CLASS SERVICEABILITY

Side tilting cab and forward tilting hood provide access to all engine, hydrostatic and hydraulic components. Quick access to daily maintenance items without tilting the cab, including grouped lubrication points. An electric hydraulic oil fill pump and vacuum pump are also standard.

FAST AND POWERFUL CRANE

The grapple and boom system are set up for fast, smooth, and powerful operation. The grapple and rotator plumbing provides maximum protection to the components and reduces downtime. The extension cylinder and grapple rotator hoses can be changed without dismantling the boom system.

FAST SMOOTH OPERATION

Caterpillar Stage 5 C7.1 engine running at 1980 RPM offers optimum power for a smooth and fast operation of the machine. The hydraulically driven variable speed cooling fan saves on fuel and provides precise temperature control.
