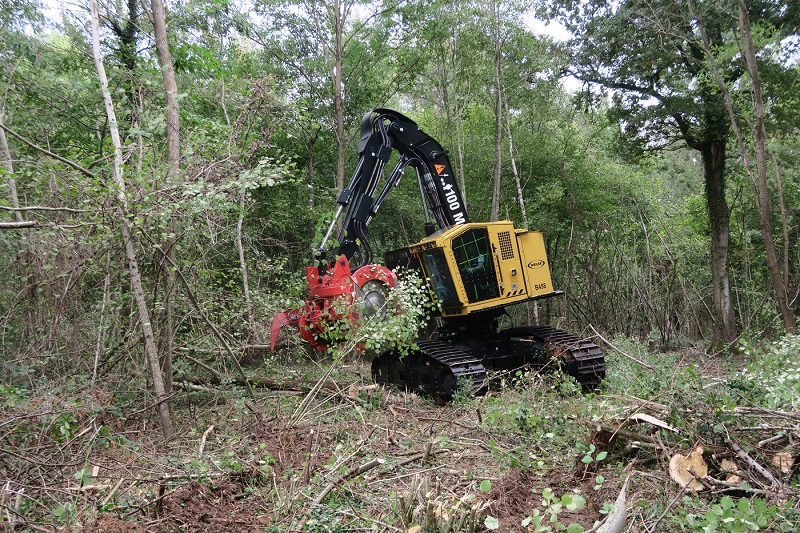

B 458 Track Feller Buncher

B 458



Description Specification
Engine Model (US & Canada) Cat® C9.3 Tier 4 Final
Engine Model (Outside US & Canada) Cat® C9.3 Tier 3
Gross Power 298 hp (222 kW)
Engine Displacement 568 in³ (9.3 L)
Weight w/out Head (US & Canada) 79,221 lb (35 934 kg)
Weight w/out Head (Outside US & Canada) 78,471 lb (35 594 kg)
Maximum Flow 322 gpm (1220 L/min)
Max. Reach (w/ 201 saw) 26’ 10” (8.19 m)
Lift at Max. Reach (no head) 13,918 lb (6313 kg)
Tractive Effort 81,229 lbf (36 845 kgf)
Undercarriage Size 336 HD HEX
Undercarriage Pitch 8.5” (216 mm)
Ground Clearance 35” (881 mm)
Track Gauge 114” (2883 mm)
Track Length 191” (4856 mm)
Leveling System Capability 21° Forward, 11° Side-to-Side
Fuel Tank Capacity 216 gal (819 L)
Engine Oil Capacity 10.6 gal (40 L)
Hydraulic System Capacity 79.8 gal (302 L)
Transport Width 11’ 11” (3.62 m)
Height 12’ 11” (3.94 m)
Length (boom ext., w/201 saw) 34’ 1” (10.39 m)
Length (boom tuck., no head) 25’ 7” (7.81 m)
Base configuration includes standard feller buncher boom and stick, roller frames in the wide position, and 28” (710 mm) single grouser shoes.
