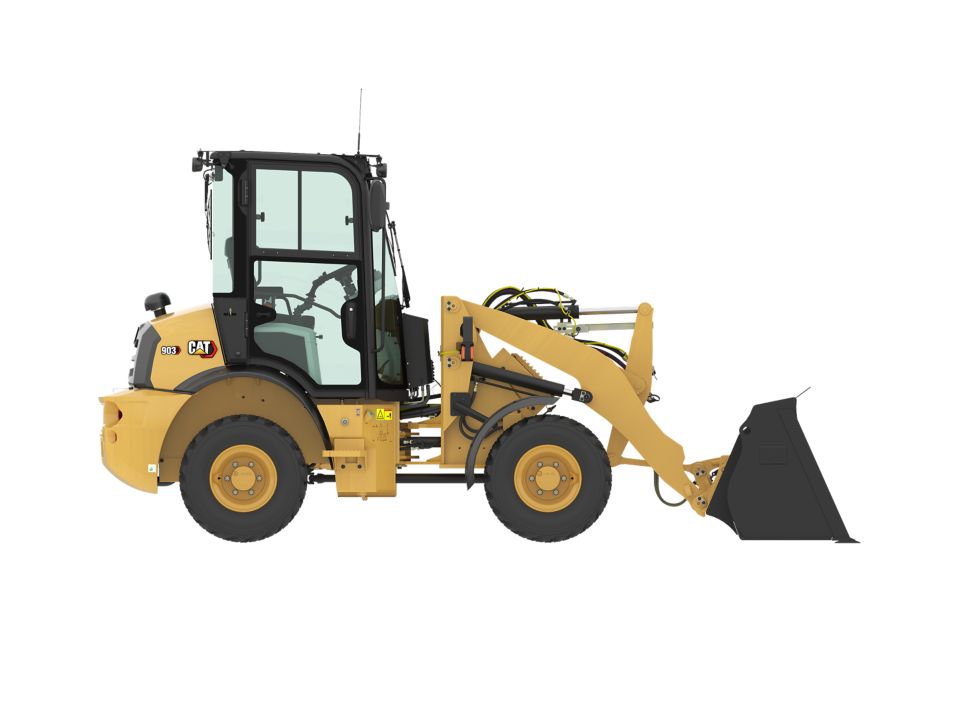

Cat Wheel Loaders 903 | Mining

Request a Quote (416) 667-5511

Product Brochures

Product Brochure #1

Product Brochure #2

Specifications

Buckets

Bucket Capacities

0.6-1.0 m3 (0.8-1.3 yd3)
Bucket Capacities - General Purpose

0.6 m3 (0.8 yd3)
Bucket Capacities - Light Material

1.0 m3 (1.3 yd3)

Cab

ROPS

ISO 3471:2008
FOPS

ISO 3449:2005 Level II

Dimensions (Approximate) - High Lift

Cab Height

8.25 ft 2510 mm
Ground Clearance

10 in 250 mm
Wheel Base

6.42 ft 1950 mm
Overall Length - With Bucket*

16.03 ft 4894 mm
Reach at Maximum Dump Height*

2.33 ft 715 mm
Dig Depth

6 in 163 mm
Maximum Dump Height*

8.16 ft 2496 mm
Load Over Height

9.75 ft 2974 mm
Hinge Pin at Maximum Height

10.58 ft 3227 mm
Departure Angle - Degrees

30°
Overall Length - With Forks

17.25 ft 5263 mm
Reach - Ground Level

2.9 ft 900 mm
Maximum Reach

4.66 ft 1429 mm
Fork Depth Above Ground

2 in 40 mm
Fork Height at Maximum Reach

4.66 ft 1429 mm
Maximum Fork Height

10.4 ft 3172 mm
Fork Reach at Maximum Height

1.8 ft 552 mm
Turning Radius - Over Bucket*

13.4 ft 3977 mm
Turning Radius - Inside Tire**

6 ft 1834 mm
Width - Over Bucket*

5.83 ft 1790 mm
Tire Gauge

4.33 ft 1314 mm
Machine Width**

5.58 ft 1708 mm
Articulation Angle

40°
Steering Angle

80°
Dump Angle at Maximum Height

40°
Note (1)

*Vary with bucket size.
Note (2)

**Vary with tire size.
Note (3)

Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.

Dimensions (Approximate) - Standard Lift

Cab Height

8.25 ft 2510 mm
Ground Clearance

10 in 250 mm
Wheel Base

6.42 ft 1950 mm
Overall Length - With Bucket*

15.4 ft 4693 mm
Reach at Maximum Dump Height*

2.33 ft 705 mm
Dig Depth

5 in 131 mm
Maximum Dump Height*

7.75 ft 2355 mm
Load Over Height

9.25 ft 2832 mm
Hinge Pin at Maximum Height

10.08 ft 3086 mm
Departure Angle - Degrees

30°
Overall Length - With Forks

16.83 ft 5129 mm
Reach - Ground Level

2.5 ft 765 mm
Maximum Reach

4.33 ft 1311 mm
Fork Depth Above Ground

3 in 67 mm
Fork Height at Maximum Reach

4.75 ft 1447 mm
Maximum Fork Height

9.9 ft 3031 mm
Fork Reach at Maximum Height

1.75 ft 543 mm
Turning Radius - Over Bucket*

12.75 ft 3891 mm
Turning Radius - Inside Tire**

6 ft 1834 mm
Width - Over Bucket*

5.83 ft 1790 mm
Tire Gauge

4.33 ft 1314 mm
Machine Width**

5.58 ft 1708 mm
Articulation Angle

40°
Steering Angle

80°
Dump Angle at Maximum Height

40°
Note (1)

*Vary with bucket size.
Note (2)

**Vary with tire size.
Note (3)

Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.

Engine

Maximum Gross Power

48 hp 36 kW
Engine Model

Cat C1.7*
Net Power @ 2,200 rpm - SAE J1349:2011

45 hp 33.6 kW
Net Power @ 2,200 rpm - ISO 9249:2007

45 hp 33.6 kW
Bore

3.3 in 84 mm
Stroke

3.9 in 100 mm
Displacement

104 in² 1.7 l
Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)

Net power advertised is the power available at the flywheel.
Note

*Engine meets U.S. EPA Tier 4 Final emission standards.

Hydraulic System

Main Relief

3336 psi 230 bar
3rd Auxiliary Flow

14.1 gal/min 53.5 l/min
Hydraulic Cycle Time - Lift

4.5 s 4.5 s
Hydraulic Cycle Time - Dump

0.7 s 0.7 s
Hydraulic Cycle Time - Lower, Float

2.3 s 2.3 s

Maximum Material Densities - General Purpose

Bucket Type

General Purpose
Rated Capacity

0.8 yd³ 0.6 m³
Dump Height

93 in 2355 mm
Maximum Material Density

3169 lb/yd³ 1880 kg/m³
Bucket Width

70 in 1790 mm
Note

Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.

Maximum Material Densities - Light Material

Bucket Type

Light Material
Rated Capacity

1.3 yd³ 1 m³
Dump Height

88 in 2225 mm
Maximum Material Density

1989 lb/yd³ 1180 kg/m³
Bucket Width

74 in 1880 mm
Note

Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.

Operating Specifications - High Lift

Tire Size

33 × 15.5-16.5, 12 PR
Rated Bucket Capacity

0.8 yd³ 0.6 m³
Breakout Force

6519 lbf 29 kN
Operating Weight

9231 lb 4187 kg
Rated Operating Load at Full Turn - Bucket***

2553 lb 1158 kg
Straight Tipping Load - Bucket***

5975 lb 2710 kg
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***

5108 lb 2317 kg
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***

5238 lb 2376 kg
Rack Back - Transport Position

51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***

3175 lb 1440 kg
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***

2381 lb 1080 kg
Note (1)

*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
Note (2)

**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
Note (3)

***Manual quick coupler, precleaner hood.
Note (4)

Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.

Operating Specifications - Standard Lift

Tire Size

33 × 15.5-16.5, 12 PR
Rated Bucket Capacity

0.8 yd³ 0.6 m³
Breakout Force

6294 lbf 28 kN
Operating Weight

9200 lb 4173 kg
Rated Operating Load at Full Turn - Bucket***

2756 lb 1251 kg
Straight Tipping Load - Bucket***

6415 lb 2910 kg
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***

5516 lb 2502 kg
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***

5626 lb 2552 kg
Rack Back - Transport Position

51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***

3393 lb 1539 kg
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***

2544 lb 1154 kg
Note (1)

*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
Note (2)

**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
Note (3)

***Manual quick coupler, precleaner hood.
Note (4)

Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.

Service Refill Capacities

Cooling System

3 gal (US) 11 l
Fuel Tank

11.4 gal (US) 43 l
Hydraulic System

6.3 gal (US) 24 l
Engine Oil

1.6 gal (US) 6 l

Sound Levels

Interior Sound

80.8 dB(A)
Exterior Sound

99.8 dB(A)

Sustainability

Recyclability

95%

Transmission

Travel Speed

12.4 mile/h 20 km/h

Weights

Operating Weight

9200 lb 4173 kg

Benefits

Work Made Easy

The 903 makes work easy with a 17% increase in horsepower with the all-new Cat C1.7 engine. This provides for improved performance when operating on grades and when using drive, steer, and lift simultaneously. The all-new optional hydraulic skid steer loader style coupler allows for faster and more efficient work tool changes while providing a viewing window that enables the operator to see the fork tips when using compact wheel loader style forks. Optional front and rear diff-lock can be activated on the fly, providing maximum traction in slick underfoot conditions.

Enjoy All Day Comfort

Operators will enjoy all day comfort with a multi-function joystick, spacious leg room, ergonomic pedal positioning, easy entry/exit, and optional speed sensitive ride control. The all-new seat provides optimal comfort, while featuring yellow adjustment touch points that make finding that perfect seat position easy. The minimal engine overhang provides excellent rear and corner visibility, making the 903 easy to operate in confined areas.

Configured for Success

Configure the 903 for success with new options such as engine and ground speed control, ideally suited for hydro-mechanical work such as using a broom. With the addition of a work tool electrical harness option, you can now run more tools than ever before. Two loader linkage options, standard and high lift, provide either improved capacity or improved lift height based on your application.

Simply Reliable

Fully opening rear hood allows easy access to the engine compartment featuring side-by-side coolers and transparent fuel/water separator with optional engine air pre-cleaner and radiator screen for high debris applications. Rear tie down locations under the machine allow for easy transport, while the service locations under the hood provide easy access for daily maintenance.
